RECENT CARBON FIBRE REPAIRS...

We recently have completed a number of Carbon Fibre repairs for some very high-performance cars, here are two examples...

Ferrari 488 Rear Diffuser

One diffuser vane badly curbed and damaged, was locally re-laminated with weave matching and clear coated and polished to effect non visible repair;

McLaren 720 Rear Diffuser

McLaren 720 rear diffuser repair, several vanes badly curbed. Locally re-laminated and clear coated and polished to effect non-seen repair;

And also last but not least...

Follow are Facebook page for the latest updates....

Read More

YES NOW FINALLY READY!!

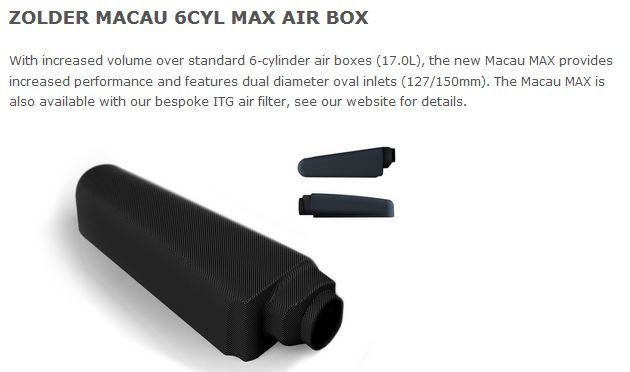

NEW 6 cylinder below Fits JC100 back plates Flat, 30, 60 or 90mm deep

We can supply with 127.5mm 5” or 150mm 6” sized intake entry

Links to parts here:

https://www.reverie.ltd.uk/reverie-zolder-macau-max-6-cyl-carbon-air-box-lh-1275mm150mm-tapered-bottom-intake-fits-jc100-baseplate/R01SE0717

https://www.reverie.ltd.uk/reverie-zolder-macau-max-6-cyl-carbon-air-box-rh-1275mm150mm-tapered-bottom-intake-fits-jc100-baseplate/R01SE0718

Technical drawing here:

https://www.reverie.ltd.uk/Downloads/R01SE0717%20R01SE0718_Zolder%20Macau%206%20Cyl%20MAX%20Airbox_LD_Issue%201.PDF

Slimmer older version still available here also:

https://www.reverie.ltd.uk/reverie-zolder-macau-6-cyl-carbon-air-box-lh-100mm-tapered-bottom-intake-fits-jc100-baseplate/R01SE0561

https://www.reverie.ltd.uk/reverie-zolder-macau-6-cyl-carbon-air-box-rh-100mm-tapered-bottom-intake-fits-jc100-baseplate/R01SE0560

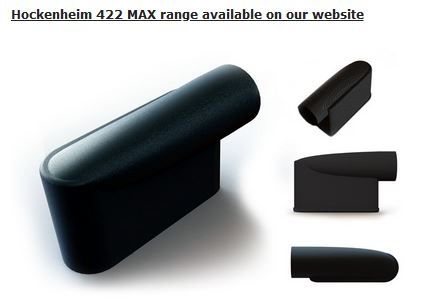

NEW 4 cylinder Hockenheim 422 max has flat or 30mm or 60mm fuel rail spacer back plate options

150mm 6” Entry can take our cone R01SE6098 Air filter in the end

Links to parts here:

https://www.reverie.ltd.uk/reverie-hockenheim-422-max-carbon-air-box-kit-std-backplate/R01SE0707

https://www.reverie.ltd.uk/reverie-hockenheim-422-max-carbon-air-box-kit-and-30mm-fuel-rail-spacer-backplate/R01SE0711

https://www.reverie.ltd.uk/reverie-hockenheim-422-max-carbon-air-box-kit-and-60mm-fuel-rail-spacer-backplate/R01SE0713

Technical drawings here:

https://www.reverie.ltd.uk/Downloads/R01SE0703-HOCKENHEIM%20422%20MAX%20MAIN%20BOX_Issue%201.PDF

https://www.reverie.ltd.uk/Downloads/R01SE0709%20R01SE0710_Hockenheim%20422%2030%20to%2060mm%20Spacer_Issue%201.PDF

THE STORY

We keep getting asked for bigger volume 4 cylinder and 6 cylinder airboxes for high power normally aspirated engines fitted with throttlebodies so.....

Both Airboxes were CAD designed here in house

Male Patterns (blue below) cnc machined here on our 5 axis cnc machine, then hand finished before being tooled up by our lamination team from SHD LTC210 Tooling carbon with a 1-8-1 layup to approx 6mm thick. Steel alignment bushes laminated in to ensure a perfect mould joint and therefore finish to the parts.
